Trail Rider Hitch Bike Rack

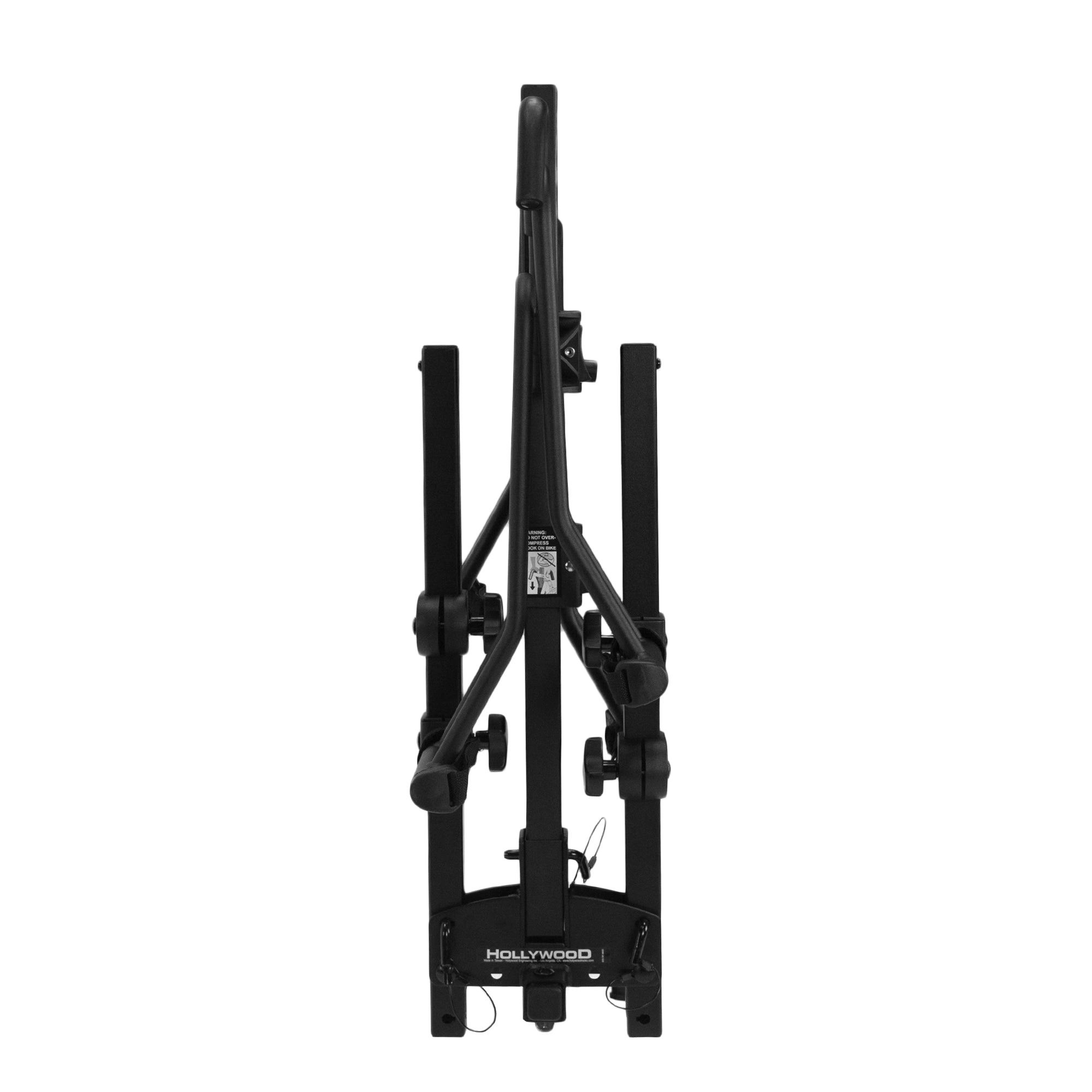

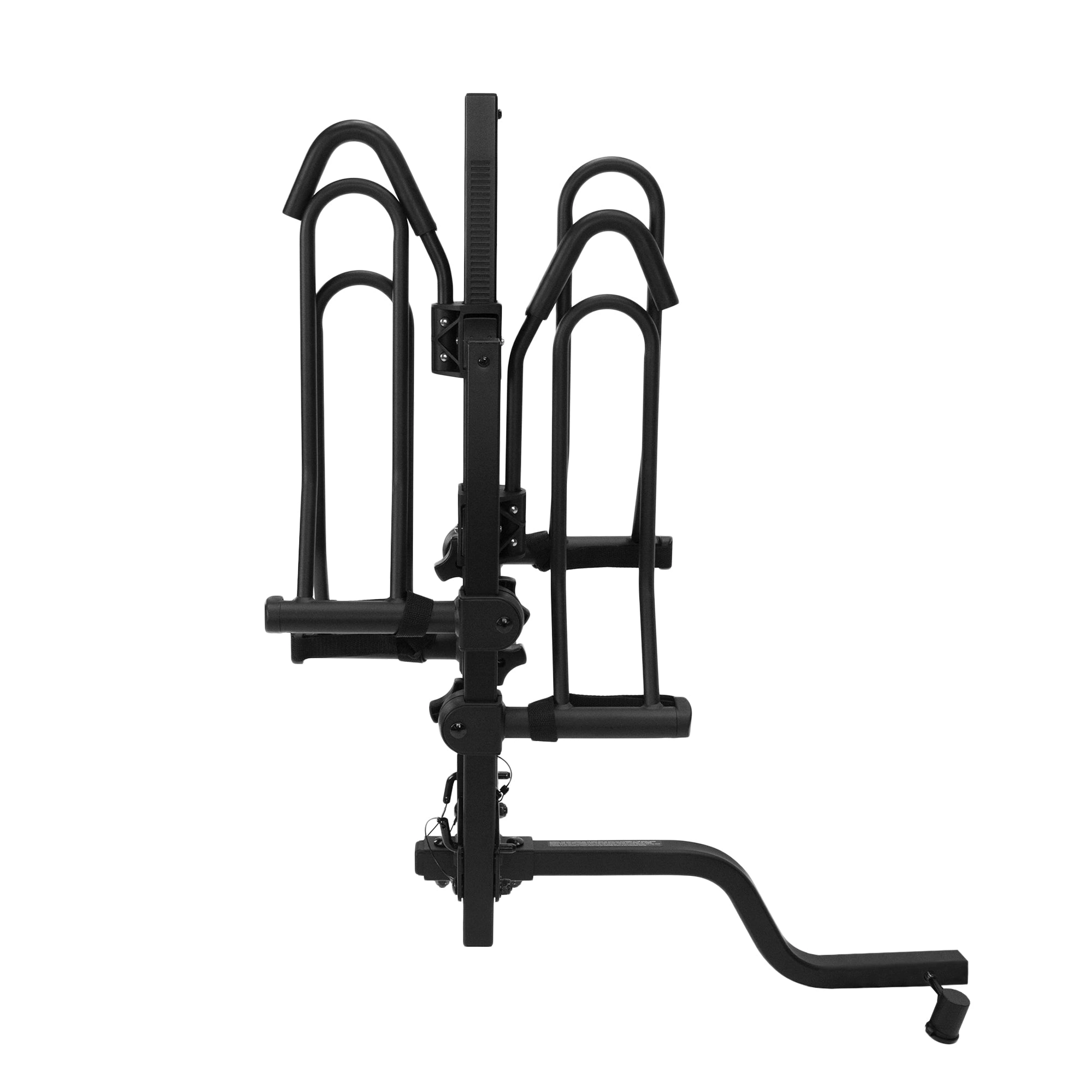

The Trail Rider Hitch Bike Rack will fit almost any style of bike using a lockable ratchet frame hook and adjustable wheel holders. It's super simple to load your bikes into this rack, all you have to do is drop the bike into the wheel holders and slide the locking hook down onto the frame to secure the bike. This bike rack includes Velcro wheel straps and a locking hitch pin which is keyed alike to the frame hooks to keep everything in place on any type of journey. Folds into a thin profile for garage storage. Fits both 1 ¼” and 2” hitches.
Specifications
- Capacity: Two Bikes (Max. 45 lbs per bike)
- Hitch Size: fits both 1 ¼” and 2”

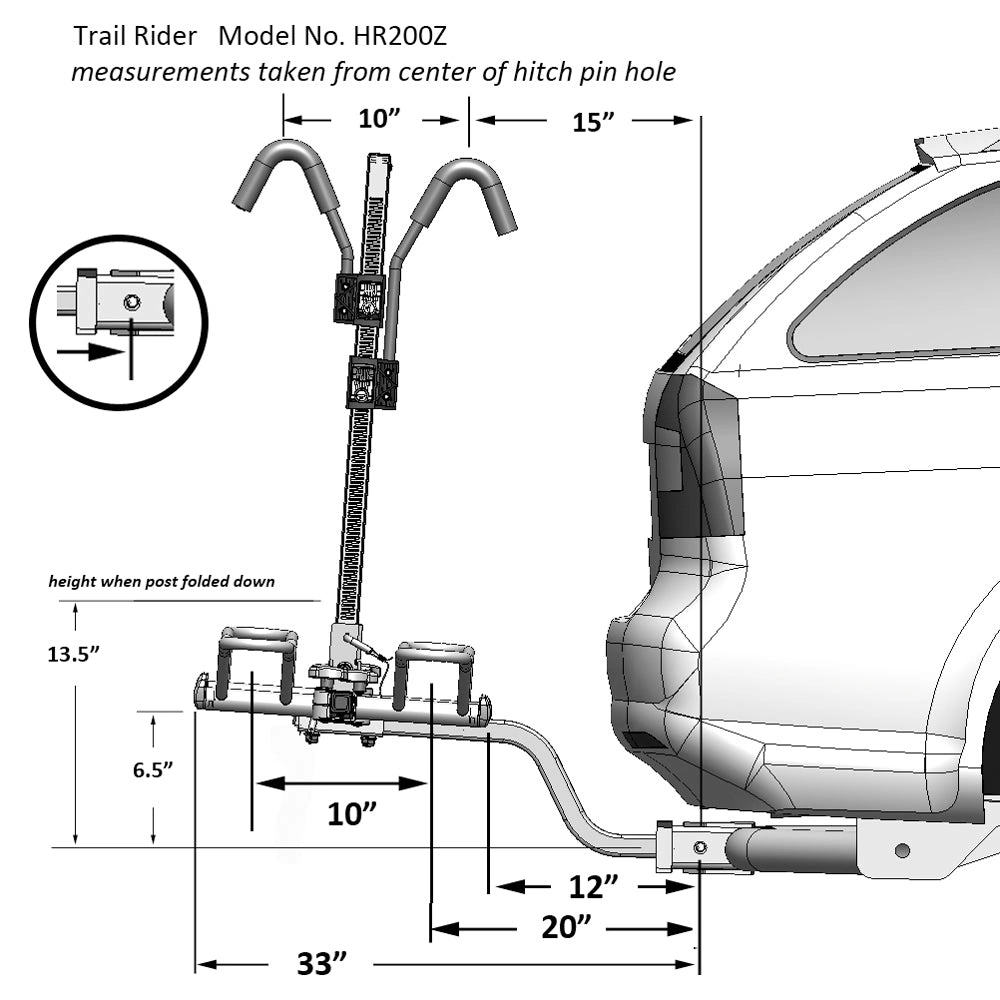

- Maximum bike wheelbase: 60” (72” long wheelbase kits available)
- Maximum tire width: 3'
- Locking threaded hitch pin (1/2-13) prevents rack sway
- Locking frame hooks to deter theft
- Rack Weight: 36.38 lbs.
- Not to be used on front hitches
- Not to be used on any trailer, fifth wheel, or towed vehicle
Installation
2019 - Present Installation Video
2019 - Present Installation Instructions
2014-2018 Installation Video
2014-2018 Installation Instructions
Replacement Parts
Replacement Parts: 2019-Present
Replacement Parts: 2016-2018
Replacement Parts: 2014-2015
